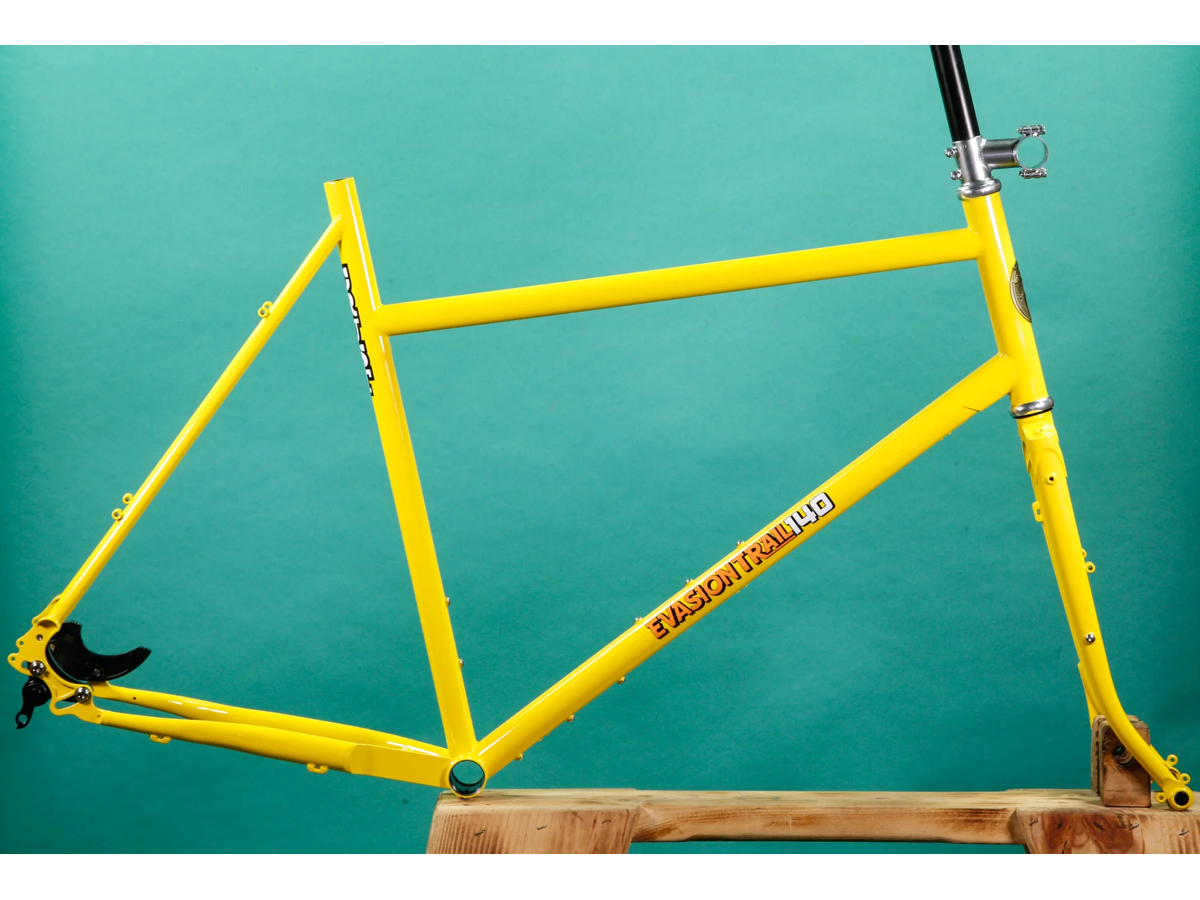

CRUST EVASION TRAIL 140 FRAME

The Crust Evasion Trail 140 is a versatile bike designed for those who want the performance of the Evasion with a more relaxed setup for flat or alt bars. It combines the comfort of a longer step-through front end with the stability and durability needed for off-road and touring adventures. Built with a modern geometry, this bike is great for exploring trails, commuting, or bikepacking with ease. The bike’s design caters to those who prefer non-drop handlebars and is equipped with Boost axle spacing both front and rear.

The Evasion Trail 140 is perfect for riders looking to hit the trails on a 26" or 27.5" wheel set, but can also be set up with 29" wheels for an even wider tire choice. It’s built to tackle everything from gravel paths to forest roads, with the flexibility to handle 2.8” tires in the 27.5" set-up, and 29” tires up to 2.0”.

With adjustable rocker dropouts, this bike is ready to run a single-speed or a Rohloff hub for a simple, efficient ride. It can be easily adapted for whatever setup you prefer, making it an incredibly versatile choice for any rider.

Whether you're riding for fun, bikepacking, or heading out on long gravel adventures, the Evasion Trail 140 offers all the flexibility and performance you need.

Key Features:

• Versatile Geometry: Perfect for flat, riser, or alt bars with a longer step-through front end.

• Tire Compatibility: Accommodates 26x3" tires, up to 27.5x2.8" tires, and even 29x2.0" for flexibility.

• Adjustable Rocker Dropouts: Compatible with single speed, Rohloff hubs, or standard mountain drivetrains.

• Front & Rear Brake Compatibility: IS mount, accepts up to 203mm rotor at the front and 180mm at the rear.

• Boost Axle Spacing: 15x110mm front and 12x148mm rear for better wheel compatibility.

• Durable Construction: Handmade from heat-treated Chromoly for strength and longevity.

• Color: Vibrant Yellow with sleek detailing.

Ideal For:

• Riders who prefer a flat or riser bar setup for off-road and gravel riding.

• Bikepackers and adventurers looking for a versatile, durable frame.

• Cyclists seeking an adaptable bike for single-speed, geared, or internal hub setups.

Specifications:

• Material: Heat-treated Chromoly, TIG welded

• Sizes: Small (59cm), Medium (62cm), Large (65cm)

• Head Tube Diameter: 1 1/8" (Threadless Steerer)

• Bottom Bracket: 73mm English (BSA) Threaded

• Fork Spacing: 15x110mm (front), 12x148mm (rear)

• Seat Post Diameter: 27.2mm

• Weight: Frame (Large) – 3kg (6lbs 10oz); Fork (Uncut Steerer) – 1.53kg (3lbs 6oz)

Evasion Trail 140 Geometry:
