CRUST SPACEGOAT 'SCAPEBOT' FRAME

The Crust Scapegoat (also known as the "ScapeBot") is the ultimate rigid mountain and touring bike, designed to take on rugged terrain and long journeys with ease. Built with every mount and braze-on you could possibly need, this bike is ready for everything from Alaska to Peru. Whether you're planning to conquer the Continental Divide, or you're just looking to get loose on the trails, the Scapegoat can handle it all.

The frame features modern geometry, a high bottom bracket for excellent pedal clearance, and wide tire clearances to accommodate a variety of wheel sizes. It can handle up to 27.5x3.8" tires, and with the right setup, you can run 26"+ or even 29" wheels for ultimate flexibility. The Scapegoat is equipped with the Rocker Dropouts, allowing you to easily configure it as a single-speed, or even use an internally geared hub for smoother riding.

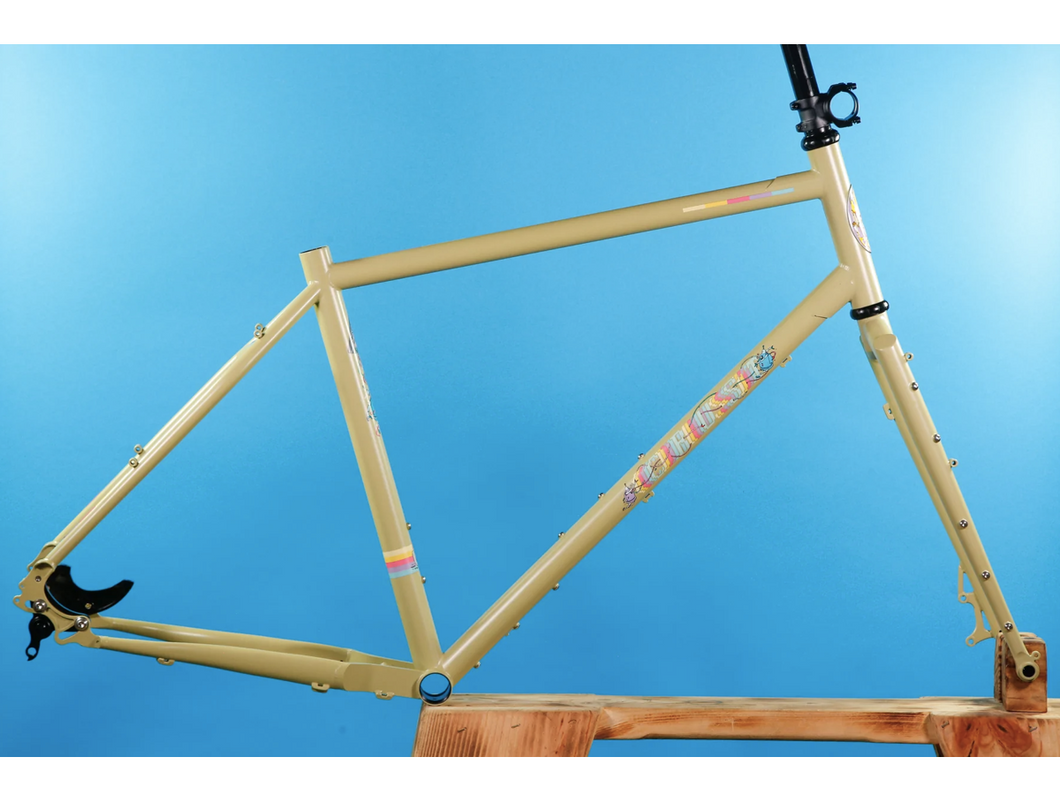

The frame is constructed from heat-treated Chromoly, making it durable enough for long rides across tough terrain. It also has a unique and fun design, available in two eye-catching colors: Macintosh Tan (P453) or Purple/Pink, giving you a frame that’s as stylish as it is functional.

Key Features:

• High Bottom Bracket: Helps prevent pedal strike, especially with larger tires.

• Versatile Tire Fit: Max tire sizes: 27.5x3.8" (650b), or 29x3" for a flexible setup.

• Rocker Dropouts: Easy to set up for single-speed or internally geared hubs.

• Geometry: Designed for comfort and handling on mixed terrain with longer reach and a slacker head tube angle.

• Mounting Options: Plenty of rack, bottle, and accessory mounts for extended trips.

• Brakes: IS Mount front and rear, with room for up to a 203mm rotor in the front.

• Built Tough: TIG-welded, heat-treated Chromoly frame ensures long-lasting durability.

• ED Coated: Provides protection against the elements and internal corrosion.

Ideal For:

• Mountain bikers and gravel riders looking for a rugged, high-performance bike.

• Adventurers planning long, off-road trips or bikepacking expeditions.

• Cyclists who want a custom, versatile setup with single-speed or geared options.

Specifications:

• Material: Heat-treated Chromoly

• Sizes: Small (56cm), Medium (59cm), Large (62cm), Extra Large (65cm)

• Head Tube Diameter: 1 1/8" (Threadless Steerer)

• Bottom Bracket: 73mm English (BSA) Threaded

• Fork Spacing: 15x110mm

• Rear End Spacing: 12x148mm

• Seat Post Diameter: 31.6mm

• Seat Post Clamp Diameter: 35.0mm

• Weight: Large Frame – 3.17kg | Fork – 1.35kg

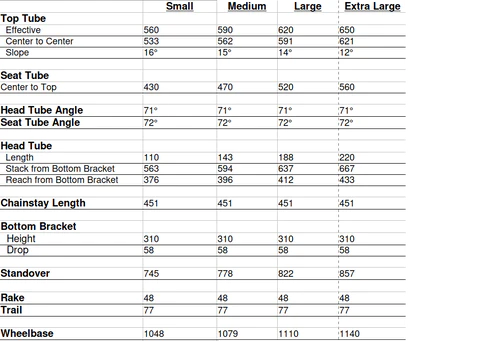

Geometry:
